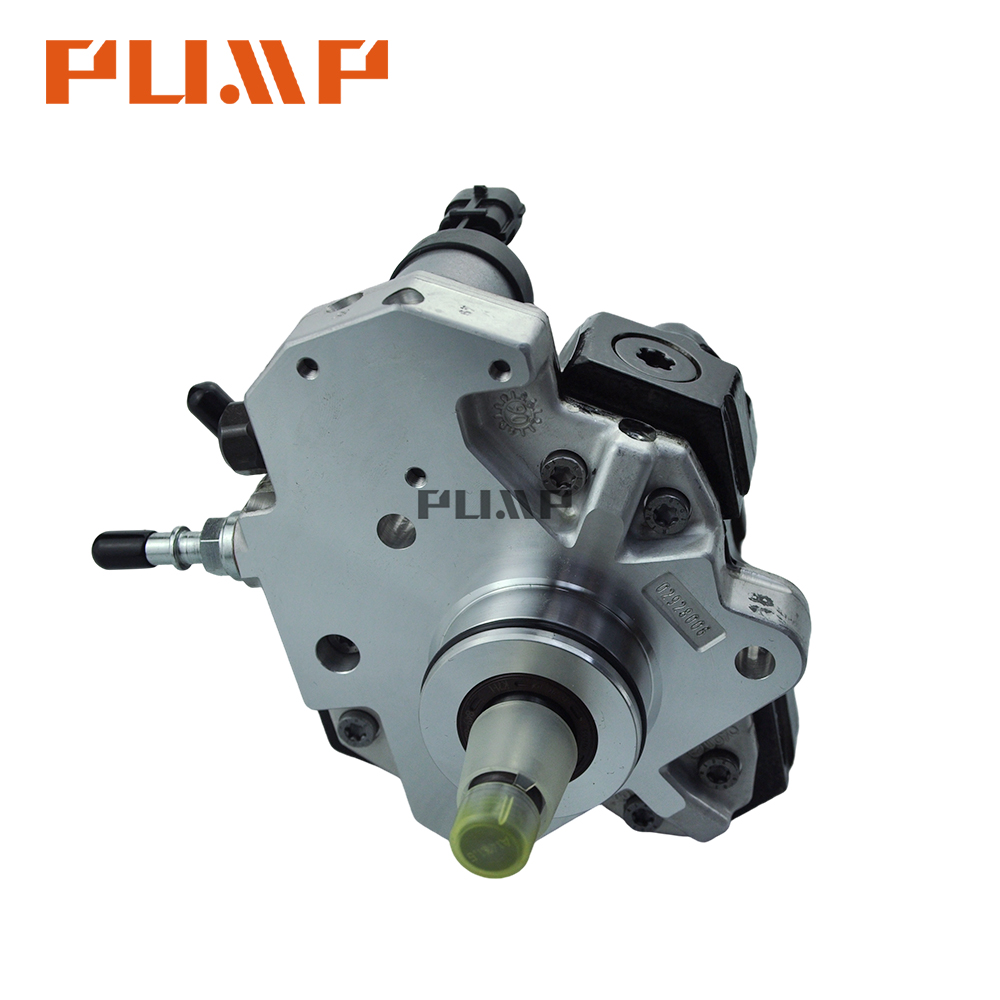

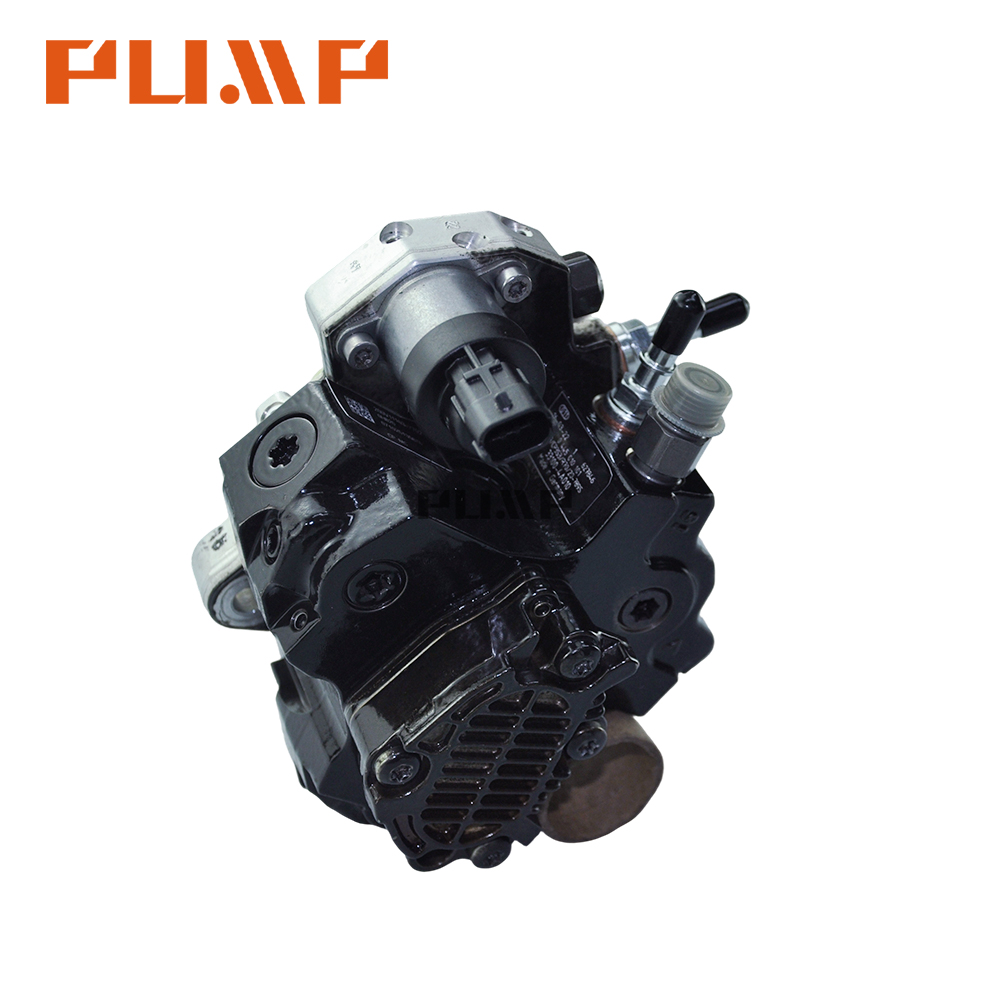

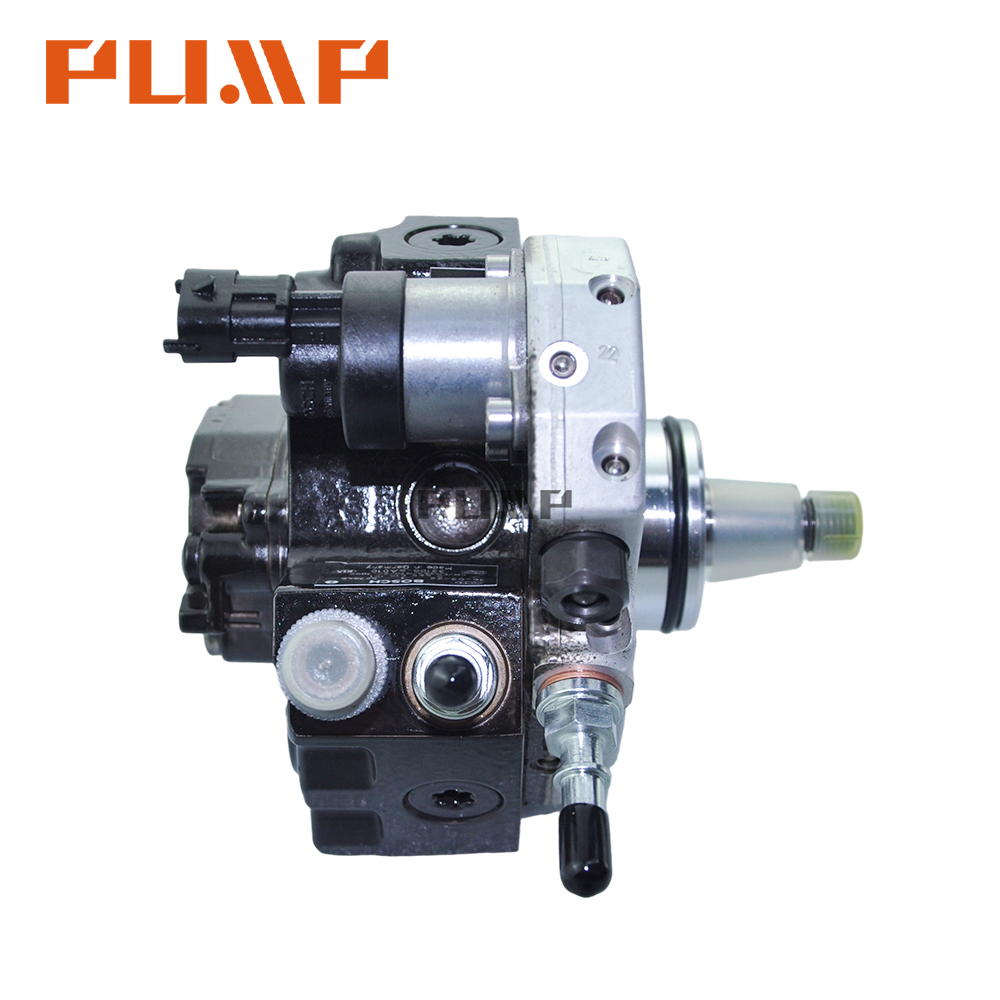

1. 0445010355 Power Diesel Pump Basic Information

Title	Common Rail 0445010355 Power Diesel Pump CP3S3 Series	Quality
SKU1	L30000B2B010355	Original New
SKU2	Z1Y30445010355	Re-manufactured
SKU3	Z1S180445010355	Re-manufactured



2. 0445010355 Power Diesel Pump Common Part Number

(1) Power Diesel Pump Exchange Information

Power Diesel Pump Part Number	Universal Part Number	Car Model	OE Number
0445010355	0986437369	HYUNDAI	331004A010



(2) Power Diesel PumpApplication Information

Car Model	Engine Model	Production Date	Power (KW)	Horse Power	Emission (L)	Cylinder	Power Source (V)
HYUNDAI	D4FA	06/2005 – 04/2006	77	105	1.5	4	12
KIA	D4FA	06/2005 – 11/2009	75	102	1.5	4	12



(2) Power Diesel Pump’s Common Writing Methods

0445010355, 0 445 010 355, 0445 010 355, 0445010 355, 0 445 010355, 0 445010355



3. 0445010355 Power Diesel Pump Specifications And Dimensions

Power Diesel Pump Size：30cm* 28cm *25 cm

Power Diesel Pump Net Weight：8kg

Power Diesel Pump Gross Weight：8.04kg

Power Diesel Pump quality：Re-manufactured/Original New

Power Diesel Pump Package Size：32cm*30cm *27 cm

Power Diesel Pump Quality：High Pressure Power Diesel Pump

Power Diesel Pump MOQ：1 piece



4. 0445010355 Power Diesel Pump Quality Control

（1）Power Diesel PumpTesting

All parts of the power diesel pump have undergone electrical characteristics testing, precision testing, high temperature testing, low temperature testing, withstand pressure testing, leakage testing, durability testing, and various working conditions testing.



（2）Power Diesel PumpInstallation

In addition, the power diesel pump production and installation process is quality controlled. Our company strictly follows the standard product installation data and product installation steps for installation, such as power diesel pump stroke test, power diesel pump solenoid valve tightening torque, power diesel pump  tightening torque.



（3）Power Diesel PumpInspection

The factory inspection of the power diesel pump has undergone three inspections: full inspection, random inspection, and batch inspection. Different brands of test benches are used to test the same power diesel pump  for a total of no less than three times for factory inspection, and the fuel injector installation testing environment are progressed in dust-free workshop.



5. 0445010355 Power Diesel Pump Packaging Box Size

NO.	Name	Power Diesel Pump Packaging Size (cm)
1	Power diesel pump packaging box	30*28*25



6. 0445010355 Power Diesel Pump Warranty Exclusions Explained

(1) The warranty period has expired.

(2) Power diesel pumpfailure caused by high temperature, high pressure, humidity, rain and snow, saline-alkali land, earthquake, and used in abnormal environment.

(3) Customer disassembles or repairs the power diesel pumppersonally resulting in damage to the power diesel pump.

(4) Power diesel pumpdamage caused by man-made reasons (throwing, strong magnetic field magnetization, set fire).

(5) Power diesel pumpfailure or power diesel pump damage caused by non-power diesel pump design, technology, manufacturing, quality and other issues.

(6) Power diesel pumpfailure due to system pressure exceeding system approved pressure.

(7) Power diesel pumpfailure caused by system voltage exceeding approved voltage.

(8) Power diesel pumpfailure caused by impurities (water, lead, aluminum powder, iron powder, sulfide) in the system fuel exceeding the standard requirements.

(9) Power diesel pumpfailure caused by not installing according to the tightening torque specified in the vehicle engine maintenance manual (the tightening torque is too large or too small).

(10) Power diesel pumpfailure caused by not following the installation angle specified in the vehicle engine maintenance manual.

(11) Power diesel pumpfailure caused by not following the cleaning requirements specified in the vehicle engine maintenance manual.

(12) Power diesel pumpfailure caused by failure to replace consumable parts as specified in the vehicle engine maintenance manual.

(13) Power diesel pumpfailure caused by not complying with the intake system fit clearance and exhaust system fit clearance requirements specified in the vehicle engine maintenance manual.

(14) Failure to replace the consumable parts and the fitting clearance of the oil inlet system pipeline and the power diesel pumpconnection in accordance with the fuel intake system specified in the vehicle engine maintenance manual.



7. 0445010355 Power Diesel Pump Purchase And Delivery

(1) 0445010355Power Diesel Pump Purchase And Payment Term

Payment Method: T/T, Paypal, Alipay, WeChat

• Please contact our salesmen for specific payment information.



(2) 0445010355Power Diesel Pump Main Sales Markets

Main Sales Markets Of Power Diesel Pump: Asia, Europe, North America, South America, Africa etc.



(3) 0445010355Power Diesel Pump Delivery Time

Delivery Time: Send out within 3 – 7 working days after receiving payment (Except for special products and special cases).
